TONERIDER P90 HOT 90 SOAPBAR PICKUPS

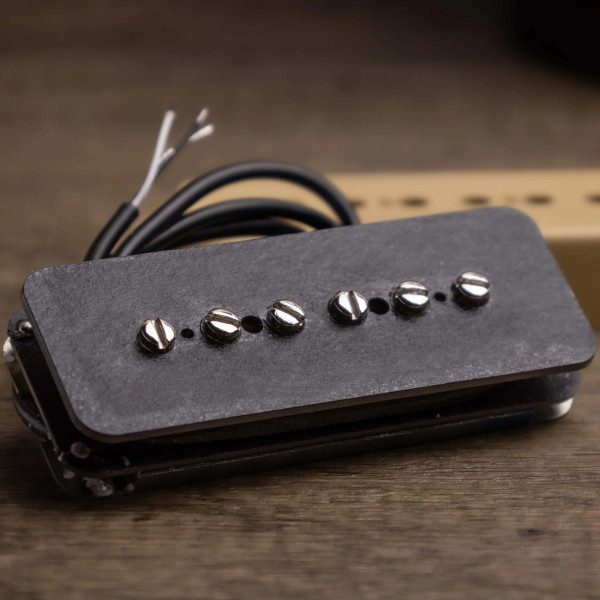

The Hot 90s are overwound, and powered by a pair of cast Alnico 5 bar magnets.

With more attack and a more sizzling, harmonically rich bass than most P90s, this set is perfect for the hard blues and rock oriented P90 fan.

The neck pickup is RWRP for noise-cancelling operation with the bridge pickup in parallel positions.

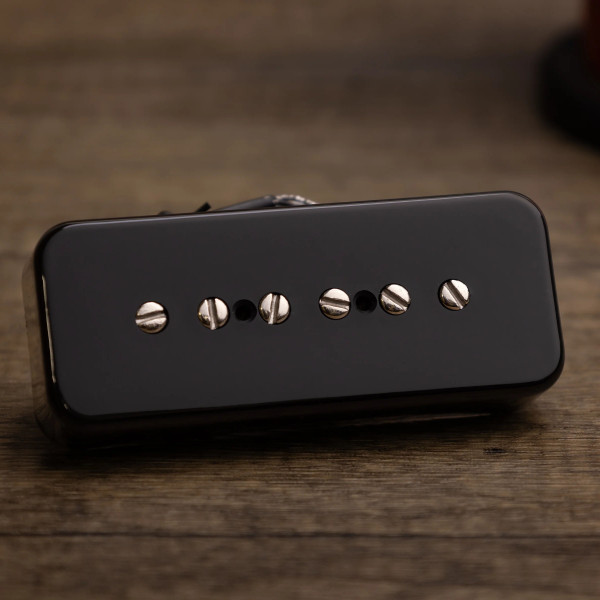

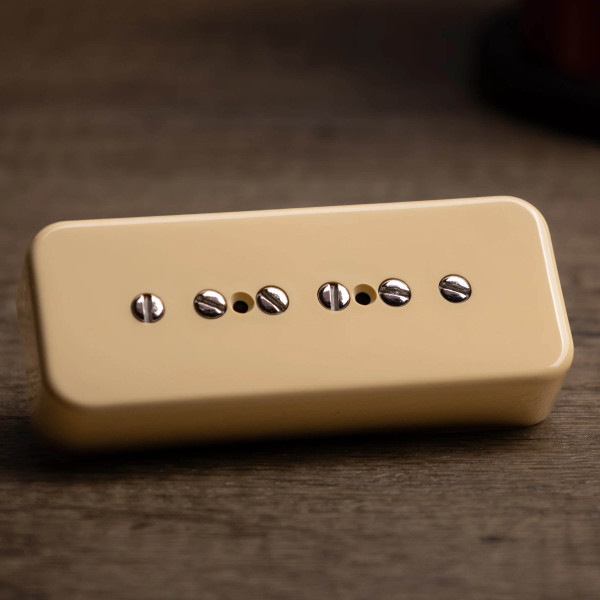

Vintage correct CAB covers now on all models.

Screws and foam supplied for installation.

Technical Specifications

Hot 90 Neck

• Magnets: Alnico 5 Bar
• DCR: 7.8k
• Inductance: 6.6H
• Hookup Wire: 2-Conductor
• Winding Direction: Counter-Clockwise
• Polarity: South Pole Up

Hot 90 Bridge

• Magnets: Alnico 5 Bar
• DCR: 8.2k
• Inductance: 6.6H
• Hookup Wire: 2-Conductor
• Winding Direction: Clockwise
• Polarity: North Pole Up
